HIGH PRESSURE BACKWARD BLADES IMPELLER - DIRECT DRIVE
FC-N

FC-N

61-FC-N
  • 61-FC-Nbdp532
  • Print this page
  • Download the catalog series in pdf

FC-N

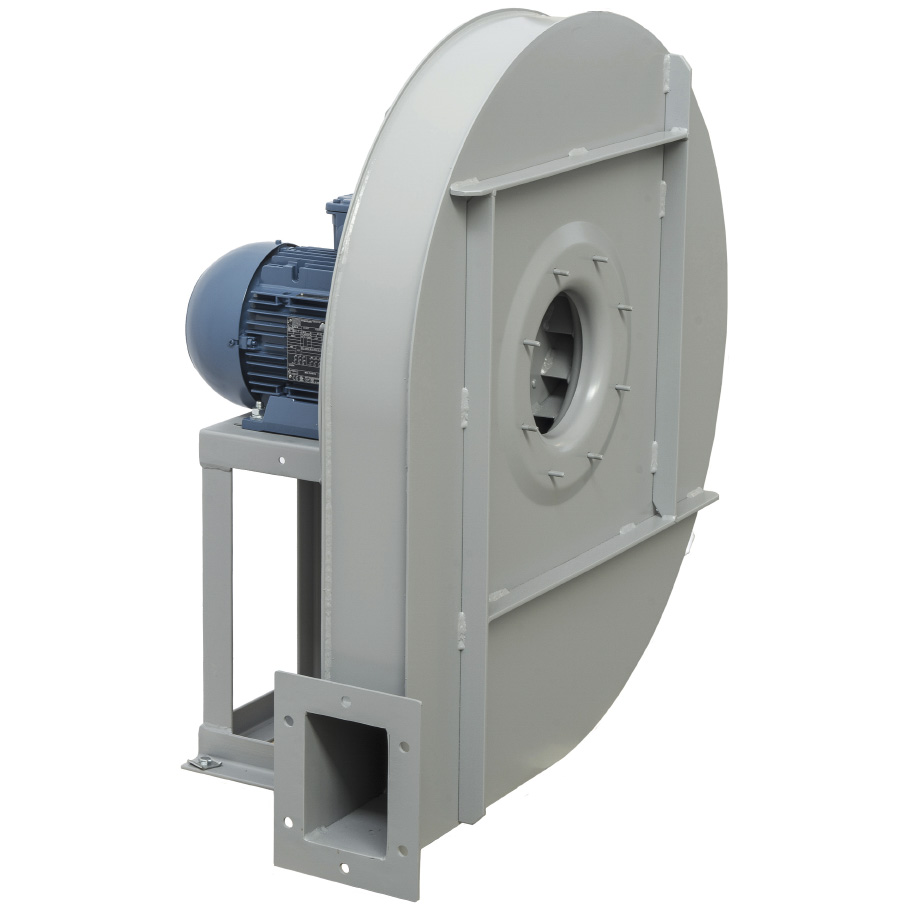

Direct drive, single inlet centrifugal fan. Manufactured from steel sheet protected with cataforesis primer + polyurethane paint finish RAL 7045.
Designed to continuously circulate air from -20ºC up to 100ºC.

Standard arrangement
• Arrangement 4: Direct drive. Impeller directly mounted on motor shaft. B3 motor is supported by the pedestal. Max air temperature 100°C. With cooling disk up to 220°C.
• Arrangement 5: Direct drive. Impeller directly mounted on motor shaft. B5 motor is fitted on casing sideplate.
• Arrangement 8: Flexible coupling. Overhung impeller. Support and motor mounted on a base outside the air stream. Max air temperature 100°C. With cooling disk up to 300°C.

Motors
2 or 4 pole, IE 3* high efficiency, three-phase 230/400V 50Hz up to motor size 112 and 400/690V 50Hz for higher motors. IP55 protection, class F.
* From 0,75kW, motor can be IE 2 and controlled by VSD.

On request
• Manufactured from different materials.
• 60 Hz versions.
• Painted in different RAL colour.
• Hot dip galvanized static parts.
• Corrosion proof construction.
• Wear proof construction.
• Motors for special applications.
• Motors suitable for VSD.
• Accessories: Flexible joints, inspection door, casing drain, AV-mounts, protection nets, filter, silencer, inlet discharge governor, valves, dampers.
• Gas tight construction.
• Thermal insulation.

ATEX

ATEX versions
On request, explosion proof versions in accordance with ATEX directive for three phase models:
Ambient temperature -20°C to +60°C, ambient pressure (abs.) 0,8 bar to 1,1 bar according to EN 14986.

• Gas:
2G IIB T2-T3-T4, Motor Exd IIB or ExeII
2G IIB+H2 T2-T3-T4, Motor ExdIIc
3G IIB T2-T3-T4, Motor ExnA (only for 3G zone)
3G IIB+H2 T2-T3-T4, Motor ExnA (only for 3G zone)

• Non-conductive dust
2D IIIB T125°C-T135°C-T195°C-T295°C
3D IIIB T125°C-T135°C-T195°C-T295°C

• Conductive dust (compulsory IP 65 motor):
2D IIIC T125°C-T135°C-T195°C-T295°C
3D IIIC T125°C-T135°C-T195°C-T295°C

Attributes

  • 61-FC-Nbdp506

    Backward curved impeller
